圖片展示
基本參數

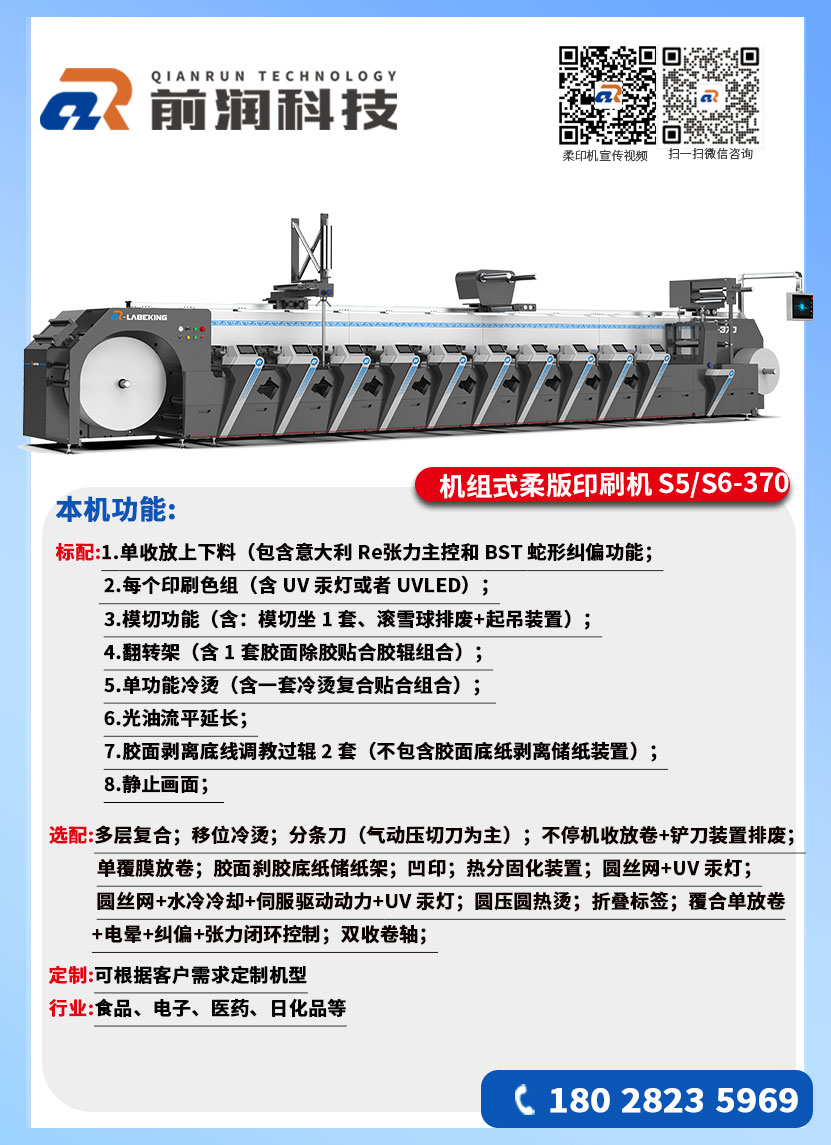

前潤S5-370機組式柔版印刷機 |
|
|
Substrate Width： |
Max370 |
|
材料寬度 |
最大370毫米 |
|
Printing Width: |
Max 370 mm |
|
印刷寬度 |
最大 370 毫米 |
|
Printing Stations: |
10 |
|
印刷色組 |
10 |
|
Paper thickness: |
35-350gsm |
|
印刷紙張厚度范圍 |
35-350gsm |
|
Print Repeat： |
222-620mm |
|
印刷重復周長范圍 |
222-620mm |
|
Machine Speed： |
200 m/min |
|
機器機械速度 |
150米/分鐘 |
|
Unwinder Reel Diameter： |
Φ1000 mm |
|
放卷直徑： |
Φ1000 毫米 |
|
Rewinder Reel Diameter: |
Φ1000 mm |
|
收卷直徑 |
Φ1000 毫米 |
| Gear specifications： | 1/8“，pitch3.175mm |
| 齒輪規格 | 1/8“，齒距3.175mm |
|
UV Curing Power |
UV LED lamp 3.2Kw 6-8 sets |
|
UV 干燥系統 |
汞燈8Kw*4條 / UV Led燈3.2Kw6～8組 |
|
Accuracy： |
≤±0.10mm |
|
套準精度： |
≤±0.10mm |
|
Power supply: |
380VAC±5%,3-phase 50/60 Hz |
|
供電需求 |
380VAC±5%，三相50/60赫茲 |
| Manipulation language： | Chinese/English |
| 操作語言 | 中文/英文 |
技術參數
| 一、標準配置 |
|
| 二、可選功能配置 |
|
| 三、特點（characteristic) |
|
1、整機采用最新伺服控制系統，每個印刷單元均采用獨立伺服電機驅動，8色機共計27個伺服電機，確保高速運轉時套印準確。 The whole machine adopts the latest servo control system. Each printing unit is driven by an independent servo motor. The 8-color machine has a total of 27 servo motors to ensure accurate registration during high-speed operation. 2、采用全新花瓣式結構和刮刀系統。改善了柔印機目前普遍存在的弊端:
3、印刷或傳墨壓力調節快捷方便：印刷輥采用承載式，換輥時無須調節壓力，特殊作業時最多微調。 Printing or ink transfer pressure adjustment is quick and convenient: the printing roller adopts load-bearing type, and there is no need to adjust the pressure when changing the roller. At most, fine-tuning is required for special operations. 4、智能不停機系統：可選配不停機收放卷系統，支持手動/自動接紙，提高生產效率；全視覺自動套印系統，實現自動套印和數據保存，返單時可一鍵調取，自動套準。 Intelligent non-stop system: optional this system, support manual/automatic paper connection, improve production efficiency; full visual automatic overprinting system, realize automatic overprinting and data storage, and can be retrieved with one button when returning the order, and automatically register. 5、多功能印刷：柔版印刷為主，支持冷燙、覆膜、除膠、多層標簽、折頁標簽、在線品檢、模切等工藝，可選配絲印、噴碼、凹版等聯機功能。 Multifunctional printing: mainly flexographic printing, supporting cold stamping, lamination, Glue removal, multi-layer labels, folding labels, online inspection, die-cutting and other processes, and optional online screen printing, inkjet printing, gravure, etc. |
| 四、適用材料： |
|
| 五、行業應用(Industry appilcations) |
|
| 六、可根據客戶要求定做機型 |
| 370/450/550/650 |
